Commercial PV System Configurations


Self-Consumption with Storage

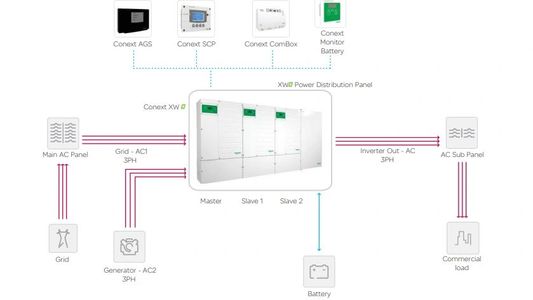

 Three-phase (120/208VAC or 240/400VAC) solution with optional AGS/Generator (21.0 or 25.5kW) Grid Sell: With Grid Sell enabled, Conext XW+ will export energy to the utility and is therefore required to be compliant with local grid export regulations. Parallel Power: With Grid Support enabled, battery power is converted to AC Power supplementing the grid input to help avoid peak utility charges – Load Shaving. Priority Power: The consumption of solar power or battery power is prioritized before purchasing power from the utility.


Self Consumption with Net Metering



Leverage your roof or field to produce energy with solar rooftop or ground mounts Reduce your grid usage, and bill, to zero during sun hours, injecting the energy produced directly into your building. Sell the surplus production to the grid or curtail the production with embedded controls. We provide reliable and safe solutions to connect to the electrical panels and building’s power network, with Schneider Electric low voltage portfolio. You will enjoy maximum yield in power production and return on investment.




Solar with Battery Back Up

 Conext XW+ integrates into the electrical system and seamlessly converts power from battery reserves to power critical loads such as pumps, security systems, refrigerators and electronics, when utility power is unavailable. Three ConextTM XW+ units are used to provide three-phase power. For extended power outage situations, ConextTMXW+ integrates with a generator to power critical loads while replenishing battery reserves.

ConextTM solutions include:

  •  Seamless switchover
  •  Powerful load starting
  •  Efficient fast ChargePower technology
  •  Integrate generator for longer autonomy
  •  Scalable battery reserve

Residential PV System Configurations


Whole House Back Up

Typical entire home backed up with a generator, solar and batteries. These systems can be expanded upon using multiple charge controls, inverters and battery banks depending upon each sites specific requirements.


These systems can be net metered or non net metering programmed.


Self Consumption System

No Net Metering NO PROBLEM!! Offset your daily use when the sun is shinning with a smaller battery bank allowing you to have a small critical load panel and using what solar produces when the sun is shining.


 These systems can be net metered or non net metering programmed.


Off-Grid

Independence through Off -Grid installation. Likely will require batteries, solar, and a generator. In some cases small wind systems can be implemented for night time use and battery charging.

Typical grid tied system

Typical Net Meter Installation

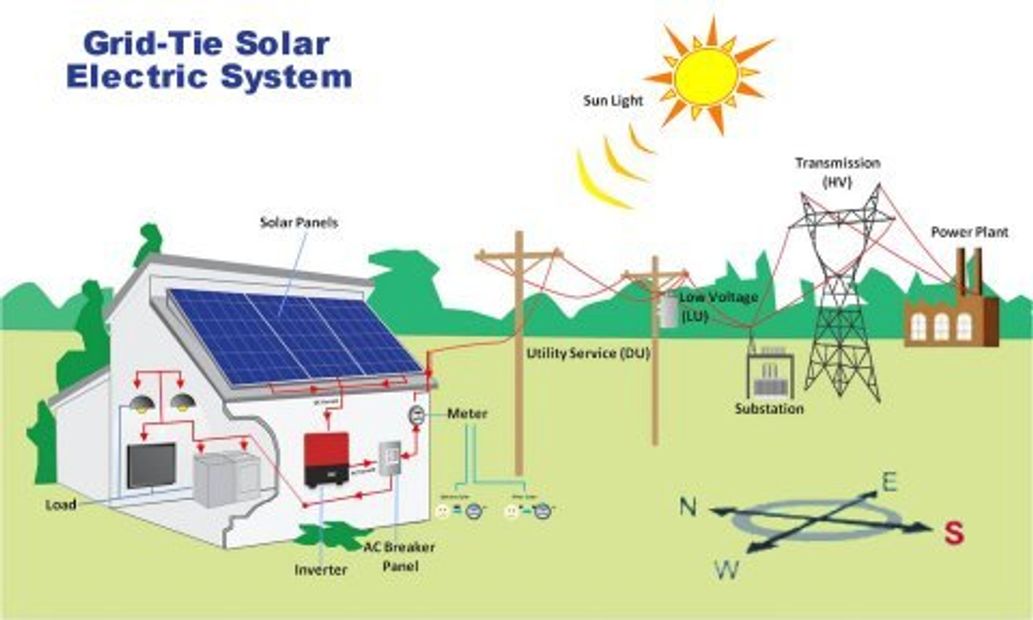

Net Metering systems also called tied to grid or grid tie system, is a semi-autonomous electrical generation or grid energy storage system which links to the mains to feed excess capacity back to the local electrical grid. When insufficient electricity is available, electricity drawn from the grid can make up the shortfall. Conversely when excess electricity is available, it is sent to the grid.

Commercial Rooftop Grid Tied String Inverters


String Inverters located on rooftop.

Residential Grid Tied Battery Back-up

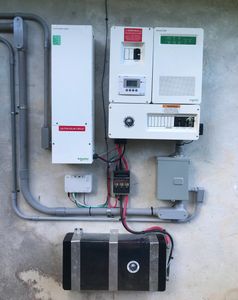

Triton Solar 10kWhr Lithium Ion with 5.2kW PV Solar Array
